Large Diameter Spiral Welded Pipes & Application

Product Range

A steel pipe made of long strip of steel coil fitted together to form helical seam which are welded.

Product Range	Large Diameter Spiral Welded Pipes
OD	22" to 80" or (550 MM to 2000 MM)
Thickness	5.00 MM to 25.40 MM
Length	6 Mtrs. to 12.70 Mtrs.
Specification	IS: 3589, Fe. 330/410 & API 5L Gr. upto X80 PSL2

Weight in KGS per Running Mtrs ( As per IS :3589, Gr. Fe.410)

OD in Inch \MM	22	24	26	28	30	32	34	36	38	40	42	44	46	48	50	52	54	56	58	60	62	64	66	68	70	72	74	76	78	80
OD in Inch \MM	558.8	609.6	660.4	711.2	762	812.8	863.6	914.4	965.2	1016	1066.8	1117.6	1168.4	1219.2	1270	1320.8	1371.6	1422.4	1473.2	1524	1574.8	1625.6	1676.4	1727.2	1778	1828.8	1879.6	1930.4	1981.2	2032
THK. In MM	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs	Weight in kg \R Mtrs
5	68.29	74.55	80.82	87.08	93.34	99.61
5.5	75.05	81.94	88.83	95.72	102.61	109.5	116.39	123.28
6	81.8	89.31	96.83	104.35	111.86	119.38	126.9	134.42	141.93	149.45	156.97	164.48	172
6.5	88.53	96.68	104.82	112.96	121.11	129.25	137.39	145.54	153.68	161.82	169.97	178.11	186.25
7	95.26	104.03	112.8	121.57	130.34	139.11	147.88	156.64	165.41	174.18	182.95	191.72	200.49	209.26	218.03	226.8
7.5	101.97	111.37	120.76	130.16	139.55	148.95	158.35	167.74	177.14	186.53	195.93	205.33	214.72	224.12	233.51	242.91
8	108.67	118.69	128.71	138.74	148.76	158.78	168.6	178.83	188.85	198.87	208.89	218.92	228.94	238.96	248.98	259	269.03	279.05	289.07	299.09	309.12	319.14	329.16	339.18	349.21	359.23	369.25	379.27	389.3	399.32
8.5	115.36	126	136.65	147.3	157.95	168.6	179.25	189.9	200.55	211.19	221.84	232.49	243.14	253.79	264.44	275.09	285.74	296.39	307.03	317.68	328.33	338.98	349.63	360.28	370.93	381.58	392.23	402.87	413.52	424.17
9	122.03	133.31	144.58	155.86	167.13	178.41	189.68	200.96	212.23	223.51	234.78	246.06	257.33	268.61	279.88	291.16	302.43	313.71	324.98	336.26	347.53	358.81	370.09	381.36	392.64	403.91	415.19	426.46	437.74	449.01
9.5	128.69	140.59	152.5	164.4	176.3	188.2	200.1	212	223.91	235.81	247.71	259.61	271.51	283.41	295.32	307.22	319.12	331.02	342.92	354.82	366.73	378.63	390.53	402.43	414.33	426.23	438.13	450.04	461.94	473.84
10	135.34	147.87	160.4	172.93	185.45	197.98	210.51	223.04	235.57	248.09	260.62	273.15	285.68	298.21	310.73	323.26	335.79	348.32	360.85	373.38	385.9	398.43	410.96	423.49	436.02	448.54	461.07	473.6	486.13	498.66
10.5	141.98	155.13	168.29	181.44	194.6	207.75	220.91	234.06	247.22	260.37	273.52	286.68	299.83	312.99	326.14	339.3	352.45	365.61	378.76	391.91	405.07	418.22	431.38	444.53	457.69	470.84	484	497.19	510.3	523.46
11	148.61	162.39	176.17	189.95	203.73	217.51	231.29	245.07	258.85	272.63	286.41	300.19	313.98	327.76	341.54	355.32	369.1	382.88	396.66	410.44	424.22	438	451.78	465.56	479.35	493.13	506.91	520.69	534.47	548.25
11.5	155.22	169.63	184.03	198.44	212.85	227.25	241.66	256.07	270.48	284.88	299.29	313.7	328.11	342.51	356.92	371.33	385.73	400.14	414.55	428.96	443.36	457.77	472.18	486.58	500.99	515.4	529.81	544.21	558.62	573.03
12	161.82	176.85	191.89	206.92	221.95	236.99	252.02	267.05	282.09	297.12	312.16	327.19	342.22	357.26	372.29	387.32	402.36	417.39	432.42	447.46	462.49	477.53	492.56	507.59	522.63	537.66	552.69	567.73	582.76	597.79
12.5	168.41	184.07	199.73	215.39	231.05	246.71	262.37	278.03	293.69	309.35	325.01	340.67	356.33	371.99	387.65	403.31	418.97	434.63	450.29	465.95	481.61	497.27	512.93	528.59	544.25	559.91	575.57	591.23	606.89	622.55
13	174.98	191.27	207.56	223.84	240.13	256.42	272.7	288.99	305.27	321.56	337.85	354.13	370.42	386.71	402.99	419.28	435.57	451.85	468.14	484.43	500.71	517	533.29	549.57	565.86	582.14	598.43	614.72	631	647.29
13.5	181.55	198.46	215.37	232.29	249.2	266.11	283.02	299.94	316.85	333.76	350.68	367.59	384.5	401.41	418.33	435.24	452.15	469.07	485.98	502.89	519.8	536.72	553.63	570.54	587.46	604.37	621.28	638.19	655.11	672.02
14			223.18	240.72	258.26	275.79	293.33	310.87	328.41	345.95	363.49	381.03	398.57	416.11	433.65	451.19	468.73	486.27	503.8	521.34	538.88	556.42	573.96	591.5	609.04	626.58	644.12	661.66	679.2	696.74
14.5			230.97	249.13	267.3	285.47	303.63	321.8	339.96	358.13	376.29	394.46	412.63	430.79	448.96	467.12	485.29	503.45	521.62	539.78	557.95	576.12	594.28	612.45	630.61	648.78	666.94	685.11	703.28	721.44
15			238.75	257.54	276.33	295.12	313.92	332.71	351.5	370.29	389.08	407.88	426.67	445.46	464.25	483.04	501.84	520.63	539.42	558.21	577.01	595.8	614.59	633.38	652.17	670.97	689.76	708.55	727.34	746.13
15.5			246.52	265.93	285.35	304.77	324.19	343.61	363.03	382.44	401.86	421.28	440.7	460.12	479.54	498.96	518.37	537.79	557.21	576.63	596.05	615.47	634.88	654.3	673.72	693.14	712.56	731.98	751.4	770.81
16			252.27	274.31	294.36	314.4	334.45	354.49	374.54	394.58	414.63	434.67	454.72	474.76	494.81	514.89	534.9	554.94	574.99	595.03	615.08	635.12	655.17	675.21	695.26	715.3	735.35	755.39	775.44	795.48
16.5							344.7	365.37	386.04	406.71	427.38	448.05	468.73	489.4	510.07	530.74	551.41	572.08	592.75	613.42	634.1	654.77	675.44	696.11	716.78	737.45	758.12	778.79	799.47	820.14
17							354.93	376.23	397.53	418.83	440.12	461.42	482.72	504.02	525.31	546.61	567.91	589.21	610.51	631.8	653.1	674.4	695.7	716.99	738.29	759.59	780.89	802.18	823.48	844.78
17.5							365.16	387.08	409	430.93	452.85	474.78	496.7	518.63	540.55	562.47	584.4	606.32	628.25	650.17	672.09	694.02	715.94	737.87	759.79	781.71	803.64	825.56	874.49	869.41
18							375.37	397.92	420.47	443.02	465.57	488.12	510.67	533.22	555.77	578.32	600.87	623.42	645.97	668.52	691.07	713.62	736.18	758.73	781.28	803.83	826.38	848.93	871.48	894.03
18.5							385.75	408.74	431.92	455.1	478.27	501.45	524.63	547.8	570.98	594.16	617.34	640.51	663.69	686.87	710.04	733.22	756.4	779.57	802.75	825.93	849.1	872.28	895.46	918.63
19							395.75	419.56	443.36	467.16	490.97	514.77	538.57	562.38	586.18	609.98	633.79	657.59	681.39	705.2	729	752.8	776.61	800.41	824.21	848.02	871.82	895.62	919.43	943.23
19.5							405.93	430.36	454.79	479.22	503.65	528.08	552.51	576.93	601.36	625.79	650.22	674.65	699.08	723.51	747.94	772.37	796.8	821.23	845.66	870.09	894.52	918.95	943.38	967.81
20							416.09	441.14	466.2	491.26	516.31	541.37	566.43	591.48	616.54	641.59	666.65	691.71	716.76	741.82	766.87	791.93	816.99	842.04	867.1	892.15	917.21	942.27	967.32	992.38
20.5									477.6	503.29	528.97	554.65	580.33	606.02	361.7	657.38	683.06	708.75	734.43	760.11	785.79	811.48	837.16	862.84	888.52	914.21	939.89	965.57	991.25	1016.94
21									488.99	515.3	541.61	567.92	594.23	620.54	646.85	673.13	699.46	725.77	752.08	778.39	804.7	831.01	857.32	883.63	909.94	936.24	962.55	988.86	1015.17	1041.48
21.5									500.37	527.31	554.24	581.18	608.11	635.05	661.98	688.92	715.85	742.79	769.72	796.66	823.59	850.53	877.46	904.4	931.34	958.27	985.21	1012.14	1039.08	1066.01
22									511.74	539.3	566.86	594.42	621.98	649.54	677.11	704.67	732.23	759.79	787.35	814.91	842.48	870.04	897.6	925.16	952.72	980.28	1007.85	1035.41	1062.97	1090.53
22.5									523.09	551.28	579.47	607.65	635.84	664.03	692.22	720.41	748.59	776.78	804.97	833.16	861.35	889.53	917.72	945.91	974.1	1002.29	1030.47	1058.66	1086.85	1115.04
23									534.43	563.24	592.06	620.87	649.69	678.5	707.32	736.13	764.95	793.76	822.57	851.39	880.2	909.02	937.83	966.65	995.46	1024.28	1053.09	1081.9	1110.72	1139.53
23.5									545.76	575.2	604.64	634.08	663.52	692.96	722.4	751.84	781.28	810.73	840.17	869.61	899.05	928.49	957.93	987.37	1016.81	1046.25	1075.69	1105.13	1134.58	1164.02
24									557.07	587.14	617.21	647.28	677.34	707.41	737.48	767.54	797.61	827.68	857.75	887.81	917.88	947.95	978.02	1008.08	1038.15	1068.22	1098.29	1128.35	1158.42	1188.49
24.5									568.38	599.07	629.76	660.46	691.15	721.85	752.54	783.23	813.93	844.62	875.31	906.01	936.7	967.4	998.09	1028.78	1059.48	1090.17	1120.86	1151.56	1182.25	1212.95
25									579.67	610.99	642.31	673.63	704.95	736.27	767.59	798.81	830.23	861.55	892.87	924.19	955.51	986.83	1018.15	1049.47	1080.79	1112.11	1143.43	1174.75	1206.07	1237.39

Large Diameter Spiral Welded Pipes & Application

Product Range

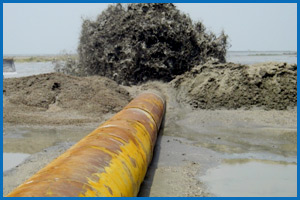

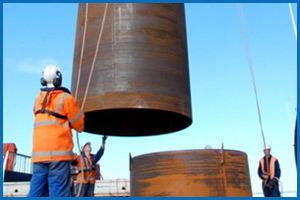

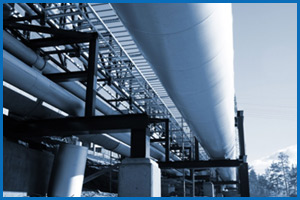

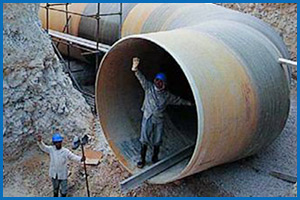

Product Applications
