Seamless Boiler Pipe Tubes & Application

Product Range

A Seamless Steel Pipe is made out of a solid round steel billet which is heated and pushed over a form until the steel is shaped into a hollow tube. The seamless pipe is then finished to dimensional and wall thickness specification.

Product Range	Seamless Boiler Pipes & Tubes
OD	21.30 MM to 508 MM or (½" to 20").
Thickness	2.77 MM to 40 MM
Specification	ASTM A 106, Gr. B/ ASTM A53, Gr. B/API 5L, Gr. B.

ASTM SCHEDULED SIZES

DIMENSIONS AND WEIGHT
Nominal Pipe Size (mm/inch)	OD (mm)	Schedule Wall Thickness (mm) / Weight (kg/m)
		Sch.	Sch.	Sch	Sch	STD	Sch.	XS	Sch.	Sch	Sch	Sch	Sch	Sch	XXS
		5	10	20	30	STD	40	XS	60	80	100	120	140	160	XXS
6	10.3	-	1.24	-	1.45	1.73	1.73	2.41	-	2.41	-	-	-	-	-
1/8		-	0.28	-	0.32	0.37	0.37	0.47	-	0.47	-	-	-	-	-
8	13.7	-	1.65	-	1.85	2.24	2.24	3.02	-	3.02	-	-	-	-	-
1/4		-	0.49	-	0.54	0.63	0.63	0.80	-	0.80	-	-	-	-	-
10	17.1	-	1.65	-	1.85	2.31	2.31	3.20	-	3.20	-	-	-	-	-
3/8		-	0.63	-	0.70	0.84	0.84	1.10	-	1.10	-	-	-	-	-
15	21.3	1.65	2.11	-	2.41	2.77	2.77	3.73	-	3.73	-	-	-	4.78	7.47
1/2		0.80	1.00	-	1.12	1.27	1.27	1.62	-	1.62	-	-	-	1.95	2.55
20	26.7	1.65	2.11	-	2.41	2.87	2.87	3.91	-	3.91	-	-	-	5.56	7.82
3/4		1.03	1.28	-	1.44	1.69	1.69	2.20	-	2.20	-	-	-	2.90	3.64
25	33.4	1.65	2.77	-	2.90	3.38	3.38	4.55	-	4.55	-	-	-	6.35	9.09
1		1.29	2.09	-	2.18	2.50	2.50	3.24	-	3.24	-	-	-	4.24	5.45
32	42.2	1.65	2.77	-	2.97	3.56	3.56	4.85	-	4.85	-	-	-	6.35	9.70
1 1/4		1.65	2.69	-	2.87	3.39	3.39	4.47	-	4.47	-	-	-	5.61	7.77
40	48.3	1.65	2.77	-	3.18	3.68	3.68	5.08	-	5.08	-	-	-	7.14	10.15
1 1/2		1.90	3.11	-	3.53	4.05	4.05	5.41	-	5.41	-	-	-	7.25	9.55
50	60.3	1.65	2.77	-	3.18	3.91	3.91	5.54	-	5.54	-	-	-	8.74	11.07
2		2.39	3.93	-	4.48	5.44	5.44	7.48	-	7.48	-	-	-	11.11	13.44
65	73.0	2.11	3.05	-	4.78	5.16	5.16	7.01	-	7.01	-	-	-	9.53	14.02
2 1/2		3.69	5.26	-	8.04	8.63	8.63	11.41	-	11.41	-	-	-	14.92	20.39
80	88.9	2.11	3.05	-	4.78	5.49	5.49	7.62	-	7.62	-	-	-	11.13	15.24
3		4.52	6.46	-	9.92	11.29	11.29	15.27	-	15.27	-	-	-	21.35	27.68
90	101.6	2.11	3.05	-	4.78	5.74	5.74	8.08	-	8.08	-	-	-	-	-
3 1/2		5.18	7.41	-	11.41	13.57	13.57	18.64	-	18.64	-	-	-	-	-
100	114.3	2.11	3.05	-	4.78	6.02	6.02	8.56	-	8.56	-	11.13	-	13.49	17.12
4		5.84	8.37	-	12.91	16.08	16.08	22.32	-	22.32	-	28.32	-	33.54	41.03
125	141.3	2.77	3.40	-	-	6.55	6.55	9.53	-	9.53	-	12.70	-	15.88	19.05
5		9.46	11.56	-	-	21.77	21.77	30.97	-	30.97	-	40.28	-	49.12	57.43
150	168.30	2.77	3.40	-	-	7.11	7.11	10.97	-	10.97	-	14.27	-	18.26	21.95
6		11.31	13.83	-	-	28.26	28.26	42.56	-	42.56	-	54.21	-	67.57	79.22
200	219.10	2.77	3.76	6.35	7.04	8.18	8.18	12.70	10.31	12.70	15.09	18.26	20.62	23.01	22.23
8		14.78	19.97	33.32	36.82	42.55	42.55	64.64	53.09	64.64	75.92	90.44	100.93	111.27	107.93
250	273.00	3.40	4.19	6.35	7.80	9.27	9.27	12.70	12.70	15.09	18.26	21.44	25.40	28.58	25.40
10		22.61	27.78	41.76	51.01	60.29	60.29	81.53	81.53	95.98	114.71	133.01	155.10	172.27	155.10
300	323.80	3.96	4.57	6.35	8.38	9.53	10.31	12.70	14.27	17.48	21.44	25.40	28.58	33.32	25.40
12		31.24	35.98	49.71	65.19	73.86	79.71	97.44	108.93	132.05	159.87	186.92	208.08	238.69	186.92
350	355.60	3.96	6.35	7.92	9.53	9.53	11.13	12.70	15.09	19.05	23.83	27.79	31.75	35.71	-
14		34.34	54.69	67.91	81.33	81.33	94.55	107.40	126.72	158.11	194.98	224.66	253.58	281.72	-

Seamless Boiler Pipe Tubes & Application

Product Range

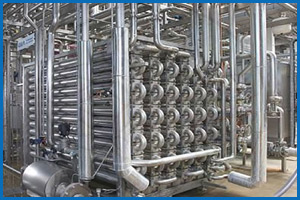

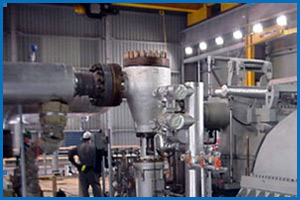

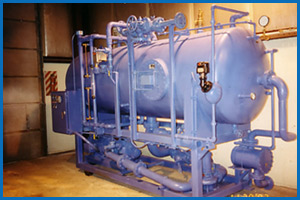

Product Applications
